11 13 020 Removing and installing/replacing lower oil sump section (N63)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove underbody protection at front and rear. See FRONT UNDERBODY PROTECTION and REAR UNDERBODY PROTECTION .
Release oil drain plug and DRAIN ENGINE OIL .
Remove STIFFENING PLATE (all-wheel drive vehicle, F12, F13).

Unlock plug connection (1) on oil level sensor and disconnect.

Release screws (2) along line.

Tightening torque 11 13 3AZ .

Remove lower oil sump section (3).

Installation note:

Clean sealing surfaces.

Replace gasket.

Replace screws.

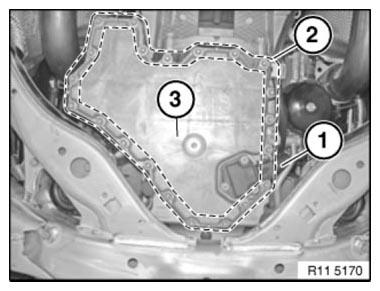

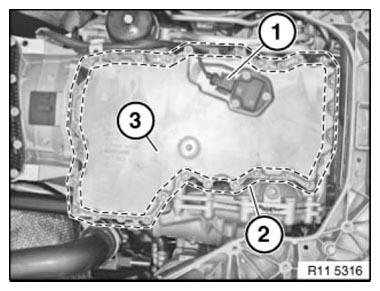

Fig 1: Identifying Lower Oil Sump Section, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing lower oil sump section:

Convert oil level sensor.

Replace sealing ring.

NOTE: Procedure with four-wheel drive.
