64 22 138 Removing and installing/replacing right fresh-air grille
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

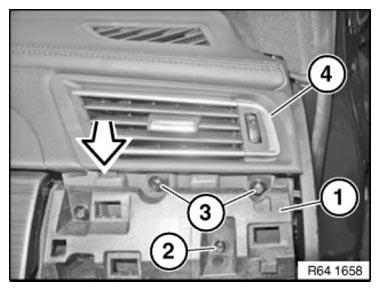

Release screw (2) and gently pull glovebox housing (1) forwards.
Release screws (3).
Pull out right fresh-air grille (4) towards front and unlock and disconnect plug connection behind.
Remove right fresh-air grille (4).
Installation:
Catches (1) of fresh-air grille (2) must not be damaged.
Make sure fresh-air grille (2) is correctly seated on fresh air duct behind.
