61 35 245 Removing and installing (replacing) Smart Opener bottom sensor line (non-contact rear lid opening)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove COVER ON REAR BUMPER PANEL

Release latch mechanisms (1) and remove control unit (2) in direction of arrow.

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock associated plug connection (1) on control unit (2) and disconnect.

Feed out connecting line from cable clips (3).

Fig 2: Identifying Control Unit, Plug Connection And Cable Clips

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage, do not kink sensor line!

Dismantling sequence:

Detach sensor line (1) from holder (2) to the top
Detach sensor cable (1) from holder (2) to the right

Installation note:

Make sure plug connection and sensor line (1) are correctly fitted.

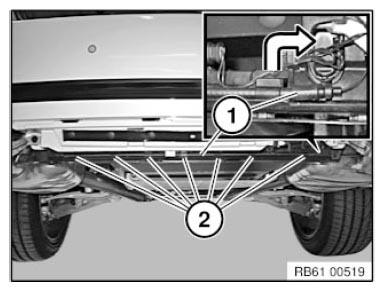

Fig 3: Identifying Sensor Line And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure connecting line is correctly laid.

Brackets must not be damaged.
