61 35 240 Removing and installing (replacing) Smart Opener control unit (non-contact rear lid opening)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove COVER ON REAR BUMPER PANEL

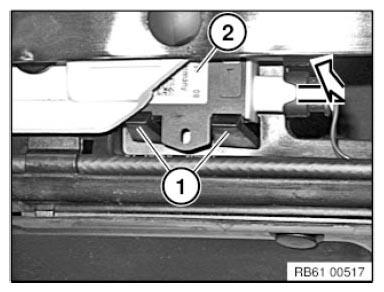

Release latch mechanisms (1) and remove control unit (2) in direction of arrow.

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

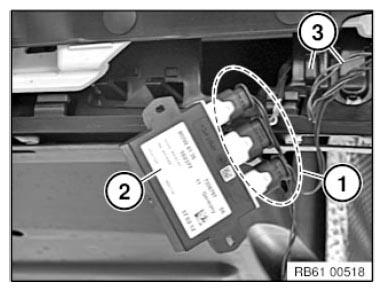

Unlock plug connections (1) from control unit (2) and detach.

Feed out connecting lines from holder (3).

Installation note:

Make sure plug connections (1) and control unit (2) are correctly fitted.

Make sure connecting lines are correctly routed at holder (3).

Fig 2: Identifying Control Unit, Plug Connections And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
