33 17 004 Replacing all rubber mounts for rear axle final drive mounting at front

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: To ensure that the rubber mounts of the rear axle differential are securely seated, observe a waiting period of 2 h after pressing in the rubber mounts or before taking the first journey.

Failure to comply with this requirement may cause the rubber mounts to drift in the rear axle support!

Necessary preliminary tasks:

Remove REAR AXLE FINAL DRIVE .

Pull out rubber mount with special tools 33 0 026 , 33 0 027 , 33 0 022 and 33 0 021 .

NOTE: Use ratchet ring spanner 33 5 105.

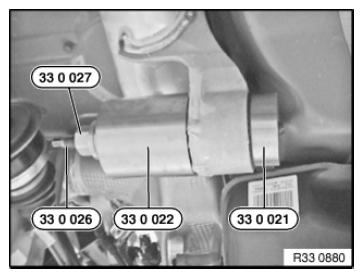

Fig 1: Pulling Out Rubber Mount Using Special Tools (33 0 026, 33 0 027, 33 0 022 And 33 0 021)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat bearing bushing in rear axle carrier and rubber mount (1) with Circo Light (refer to BMW Parts Service).

Align rubber mount (1) by means of notch (2).

Protrusion (3) points to rear final drive unit.

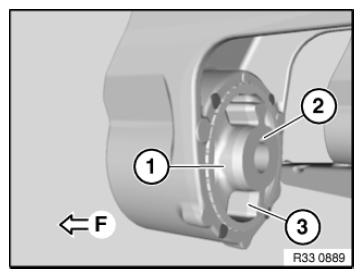

Fig 2: Identifying Rubber Mount, Notch And Protrusion Points

Courtesy of BMW OF NORTH AMERICA, INC.

Insert rubber mount (1) in special tool 33 0 025 .

Pull on rubber mount (1) with special tools 33 0 026 , 33 0 027 , 33 0 024 and 33 0 023 as far as it will go.

NOTE: Use ratchet ring spanner 33 5 105.

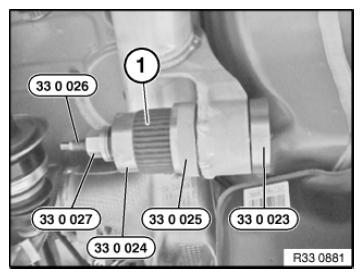

Fig 3: Pulling On Rubber Mount Using Special Tools (33 0 026, 33 0 027, 33 0 024 And 33 0 023)
