31 60 005 Removing and installing/replacing both output shafts: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL .
Remove STIFFENING PLATE

Release collar bolt (1) on left and right.

Operate brake to do this.

Tightening torque 31 60 2AZ

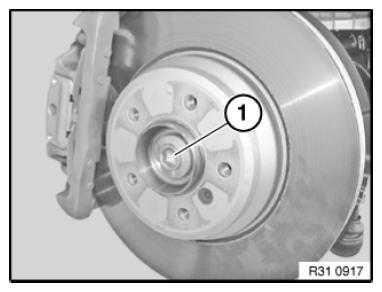

Fig 1: Identifying Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Renew collar bolt (1) and compression spring (2).
- Pay attention to direction of installation of compression spring!
Keep collar bolt and spur gearing of bearing/output shaft clean and free of grease.
Follow installation note of the spur gearing.

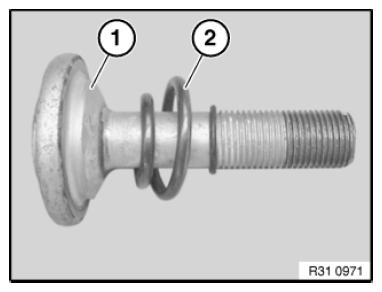

Fig 2: Identifying Collar Bolt And Compression Spring
Courtesy of BMW OF NORTH AMERICA, INC.
Remove WISHBONE in lower left and right.

IMPORTANT: Risk of damage!
The wheel control joint must not exceed an angle deflection >55° in the vehicle!

IMPORTANT: Risk of damage!
Secure output shaft against falling out.

Knock out output shaft (1) on left and right using an aluminium drift (2) out of front axle differential/bearing support.

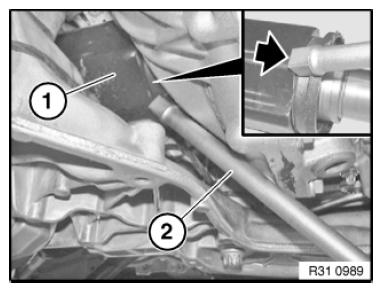

Fig 3: Removing Output Shaft From Front Axle Differential/Bearing Support Using Aluminium Drift

Courtesy of BMW OF NORTH AMERICA, INC.

Press swivel bearing slightly to one side and remove output shaft.
