31 60 000 Removing and installing/replacing left or right output shaft: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove STIFFENING PLATE
- Remove SWIVEL BEARING .
- Remove SPRING STRUT .
IMPORTANT:
Risk of damage!
Secure output shaft against falling out.
Secure output shaft against falling out.

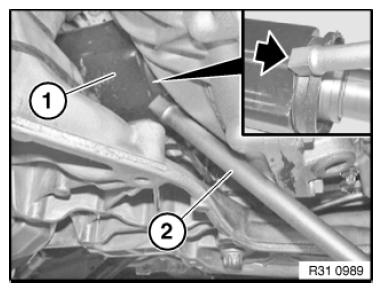

Knock out left or right output shaft with an aluminium spike (2) at the front axle differential/bearing support.
