32 33 010 Removing and installing/replacing sport steering wheel: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks:

Remove AIRBAG UNIT

Move wheels/sport steering wheel into straight-ahead position.

Disconnect plug connection (1).

Release screw (2) and remove sport steering wheel.

Installation note:

Make sure connecting line(s) is/are correctly laid.

Tightening torque 32 33 1AZ .

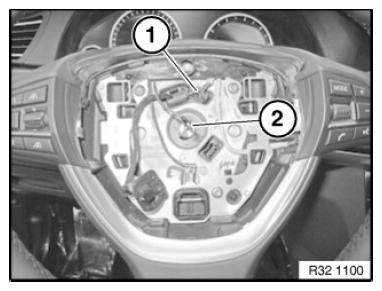

Fig 1: Identifying Sport Steering Wheel Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Version with steering wheel heating: Before fitting sport steering wheel on steering column, ensure correct cable routing.

Align sport steering wheel by way of marking (1) to steering column marking (2) and attach.

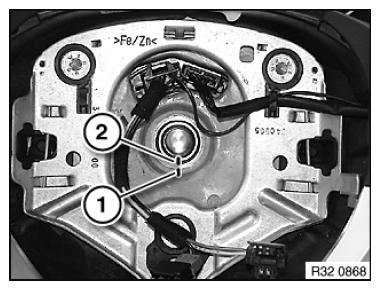

Fig 2: Identifying Sport Steering Wheel And Steering Column In Aligned Position

Courtesy of BMW OF NORTH AMERICA, INC.
