32 34 030 Removing and installing/replacing airbag unit (sport steering wheel)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe the following instructions to avoid any risk of injury by the airbag unit.

Comply with SAFETY REGULATIONS for handling components with gas generators.
Do not exert any force on the airbag unit.
Use only specified tools for releasing the airbag unit.

NOTE: Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.

IMPORTANT: STEERING WHEEL must be replaced if airbag unit has been triggered!
Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD

Insert Torx screwdriver T30 (1) straight into concealed opening on reverse side of steering wheel until a spring resistance is felt (approx. 2 cm).

Increase pressure on spring leg using Torx screwdriver T30 (1) until airbag unit is released.

For purposes of clarity: airbag unit removed!

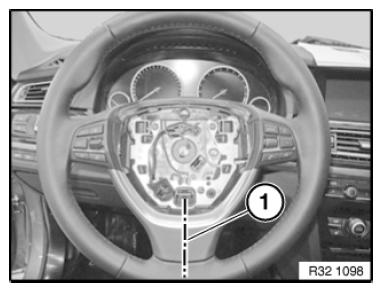

Fig 1: Inserting Torx Screwdriver T30 Into Concealed Opening On Steering Wheel Reverse Side

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure electrical leads are correctly positioned.

Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.

WARNING: Danger of injury!
Airbag unit may only be set down with the airbag itself facing upwards.

Tilt airbag unit towards rear.

Disconnect plug connections (1) and (2) and remove airbag unit.

Fig 2: Identifying Airbag Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
