32 41 285 Replacing level switch for Dynamic Drive fluid reservoir

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front left SUSPENSION CROSS-BRACE
Remove INTAKE PORT for air filter housing

Release screws (1) and (2).

Remove washers.

Tightening torque 32 41 1AZ/ 2AZ

Remove fluid reservoir by pulling upwards.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

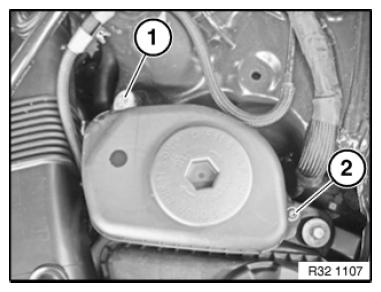

Fig 1: Identifying Fluid Reservoir Screws

Courtesy of BMW OF NORTH AMERICA, INC.

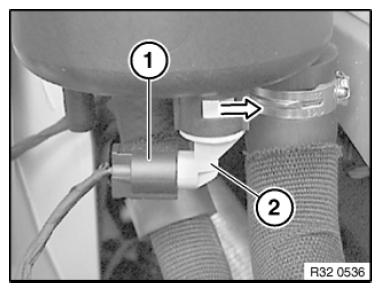

Fig 2: Identifying Plug Connection And Level Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.
