51 71... Removing and installing/replacing (front) left or right suspension cross-brace

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the suspension cross-brace is not permitted. (risk of damage to the body).
Tighten screw on suspension cross-brace to torque. Then tighten to angle of rotation, special tool 00 9 120 .

Release screws (1).

Tightening torque 51 61 1AZ and 2AZ .

Remove suspension cross-brace (2).

Installation:

Make sure suspension cross-brace (2) is in correct installation position. Screw with washer is fitted at connection, front top.

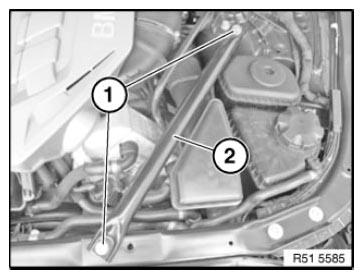

Fig 1: Identifying Suspension Cross-Brace And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
