32 41 250 Removing and installing/replacing fluid reservoir for hydraulic steering: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with seal plugs.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from oil reservoir
Remove front left SUSPENSION CROSS-BRACE

Release screws (1) on wheel arch and screw (2) on expansion tank.

Remove washers.

Tightening torque 32 41 1AZ/2AZ .

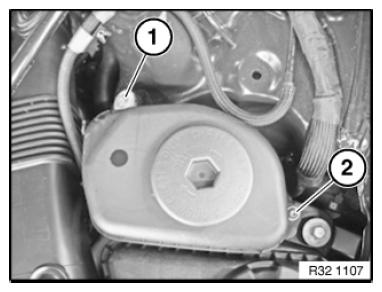

Fig 1: Identifying Wheel Arch And Expansion Tank Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection and hoses.

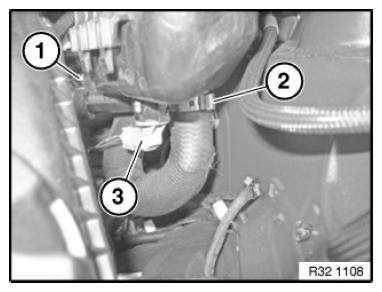

Fig 2: Identifying Oil Level Sensor Plug Connection And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1) from radiator return line.

Tightening torque 32 41 3AZ .

Unfasten hose clamp (2).

Installation note:

Replace hose clamp.

If necessary, disconnect plug connection (3) from oil level sensor

Disconnect intake pipe and radiator return line from fluid reservoir.

Lift out oil reservoir.
