11 65 165 Removing and installing/replacing blow-off valve (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Follow diagnosis instruction.
Remove exhaust turbocharger . See 11 65 025 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 (N63) or 11 65 030 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 (N63) .

Release screws (1).

Tightening torque 11 65 9 AZ .

Remove blow-off valve (2).

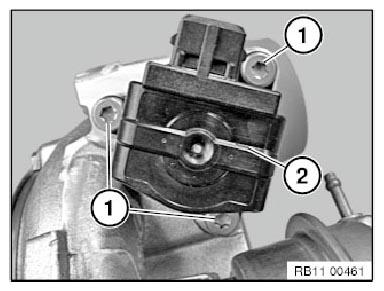

Fig 1: Identifying Blow-Off Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check VACUUM CONNECTIONS for correct routing.

Check VACUUM SYSTEM FOR LEAKS .

Assemble engine.
