11 61 730 Check BMW diagnosis system for excess pressure and vacuum (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Important!

Excess pressure and vacuum lines are identified by the size of the connection fittings and color-coded red and blue and must not be mixed up with each other.

Build up pressure with Blue color.

Generate vacuum pressure with Red color

Mixing up the functions will result in damage to the engine.

Necessary preliminary tasks:

Note on ordering:

Pressure measurement:

Prepare BMW diagnosis system on diagnosis unit.

  1. Screw in pressure sensor.
  2. Overpressure connection (Blue).
  3. Connect stimuli cables (3) to positive and negative.
  4. Connect 12V battery cables (4) to vehicle battery positive and negative.
    Fig 1: Measuring Pressure
    G05501826Courtesy of BMW OF NORTH AMERICA, INC.

Secure seal plug (1) with union nut (2) in intake duct and seal.

Note:

Twin-Turbo: both intake ducts must be sealed.

Fig 2: Identifying Seal Plug And Union Nut
G05501827Courtesy of BMW OF NORTH AMERICA, INC.

Insert Blue pneumatic hose (4) in pneumatic coupling (2) of sealing plug (1). Seal plug (3) has no pneumatic coupling.

Fig 3: Inserting Blue Pneumatic Hose In Pneumatic Coupling Of Sealing Plug
G05501828Courtesy of BMW OF NORTH AMERICA, INC.

Vacuum pressure measurement:

Prepare diagnosis tester on diagnosis unit.

  1. Screw in pressure sensor.
  2. Connect stimuli cables (2) to positive and negative.
  3. Connect 12V battery cables (3) to vehicle battery positive and negative.
  4. Controller for vacuum connection.
  5. Vacuum connection (Red).
    Fig 4: Measuring Vacuum Pressure
    G05501862Courtesy of BMW OF NORTH AMERICA, INC.

Calibration for vacuum pressure measurement:

Seal stop cock (2) in direction of arrow.

Release lock nut on controller (1).

Carry out pressure adjustment in accordance with BMW diagnosis instruction.

Secure controller (1) hand-tight against turning.

Open stop cock (2) again.

Fig 5: Releasing Lock Nut On Controller
G05501830Courtesy of BMW OF NORTH AMERICA, INC.

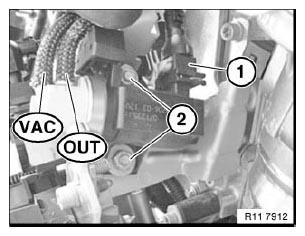

Connections on EPPC:

  1. Connection (VAC) to vacuum reservoir.
  2. Connection (OUT) with ring to exhaust turbocharger.
    Fig 6: Identifying Plug Connections
    G06178826Courtesy of BMW OF NORTH AMERICA, INC.

Vacuum activation, cylinders 1-4.

Detach red vacuum hose from vacuum unit.

Prepare T-piece (5) with vacuum lines for measurement.

Connect red vacuum line (1) with vacuum unit (2) and quick-release coupling (3).

Open shutoff tap (4).

Note:

Observe diagnosis instructions.

Fig 7: Identifying Vacuum Line
G06888834Courtesy of BMW OF NORTH AMERICA, INC.

Vacuum activation, cylinders 5-8.

Detach blue vacuum hose from vacuum unit. Prepare T-piece (5) with vacuum lines for measurement. Connect blue vacuum line (1) with vacuum unit (2) and quick-release coupling (3). Open shutoff tap (4).

Note:

Observe diagnosis instructions.

Fig 8: Identifying Pipe Connections
G06888835Courtesy of BMW OF NORTH AMERICA, INC.

Exhaust turbocharger, cylinders 1-4.

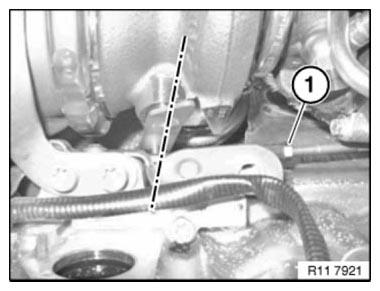

Initial position (1) of wastegate linkage depressurised. Wastegate valve opened.

Fig 9: Identifying Turbocharger Control Link
G06888836Courtesy of BMW OF NORTH AMERICA, INC.

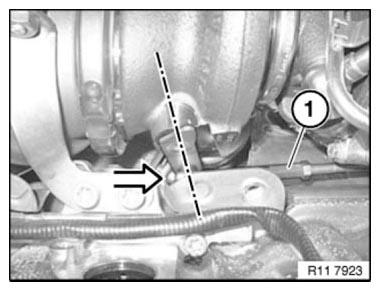

Initial position (1) of wastegate linkage with vacuum pressure. Wastegate valve closed.

Fig 10: Locating Turbocharger Control Link End
G06888837Courtesy of BMW OF NORTH AMERICA, INC.

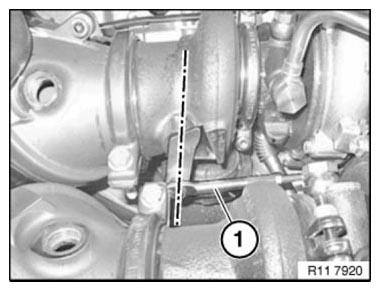

Exhaust turbocharger, cylinders 5-8.

Initial position (1) of wastegate linkage depressurised. Wastegate valve opened.

Fig 11: Identifying Turbocharger Control Link
G06888838Courtesy of BMW OF NORTH AMERICA, INC.

Initial position (1) of wastegate linkage with vacuum pressure. Wastegate valve closed.

Fig 12: Locating Turbocharger Control Link End
G06888839Courtesy of BMW OF NORTH AMERICA, INC.

Check wastegate valve with vacuum:

Check wastegate valve with vacuum:

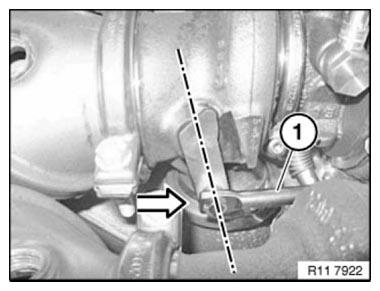

Wastegate valves must be opened without vacuum. The wastegate valves must close if a vacuum pressure is applied at the wastegate sockets (see BMW diagnosis system). Check shaft on turbine wheel for rotatability.

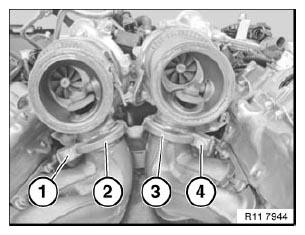

Fig 13: Identifying Turbocharger Pipe Components
G06178779Courtesy of BMW OF NORTH AMERICA, INC.
