11 65 010 Removing and installing/replacing pressure accumulator (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove both exhaust turbochargers . See 11 65 025 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 (N63) or 11 65 030 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 (N63). .
Remove both exhaust manifolds . See 18 40 010 REMOVING AND INSTALLING/REPLACING LEFT EXHAUST MANIFOLD (N63) or 18 40 020 REMOVING AND INSTALLING/REPLACING RIGHT EXHAUST MANIFOLD (N63). .
Remove HEAT SHIELD at bottom.

Release banjo bolt (1).

Tightening torque 11 42 3AZ .

Installation note:

Replace sealing ring.

Release screw (3) on engine oil line.

Remove engine oil line (2).

Release screws (3) on vacuum reservoir (4).

Tightening torque 11 65 6AZ .

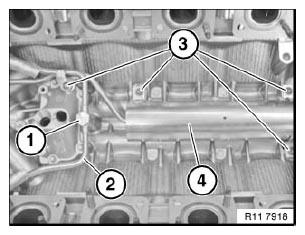

Fig 1: Identifying Vacuum Reservoir, Engine Oil Line, Banjo Bolt And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vacuum reservoir (4).

Check VACUUM CONNECTIONS for correct routing.

Check VACUUM SYSTEM FOR LEAKS .

Assemble engine.
