11 14 250 Removing and installing/sealing rear coolant end cover (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470 .

WARNING: Risk of scalding!

Only perform this work after engine has cooled down.

Recycling

Catch and dispose of drained coolant in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

Remove FLYWHEEL .
Drain COOLANT .

Release all screws in area (1).

Tightening torque 11 14 5AZ .

Remove end cover.

NOTE: Clean sealing surfaces with special tool 11 4 470 .

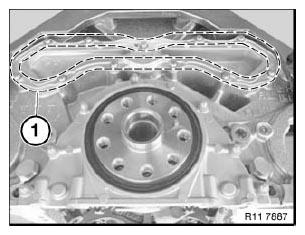

Fig 1: Identifying Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace profile seal (1).

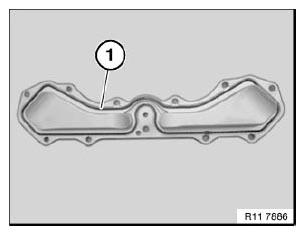

Fig 2: Identifying Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
