33 55 000 Removing and installing/replacing rear anti-roll bar

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Undo ANTI-ROLL BAR LINKS AT THE ANTI-ROLL BAR .
Lower REAR AXLE SUPPORT .

Release screw (1). (Left side only.)

Tightening torque 33 32 6AZ .

Installation note:

Replace screw.

Tighten down screw connection in NORMAL POSITION .

Fig 1: Identifying Rear Anti-Roll Bar Screw

G10095652

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To simplify the graphic, anti-roll bar removal is shown on the removed rear axle.

Release screws (1).

Tightening torque 33 55 1AZ .

Remove both RUBBER MOUNTS FROM ANTI-ROLL BAR .

Turn anti-roll bar (2) and remove toward the left side.

Installation note:

Check both rubber mounts for damage and replace if necessary.

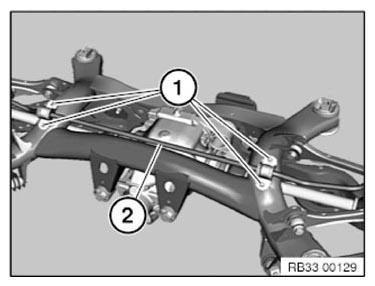

Fig 2: Identifying Anti-Roll Bar And Screws

G10095704

Courtesy of BMW OF NORTH AMERICA, INC.
