37 14 512 Replacing rear ride height sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CAMBER ARM COVER .

Slacken nut (1).

Tightening torque 37 14 4AZ .

Detach jointed rod (2).

Disconnect plug connection (3).

Unclip cable with holder (4).

Release screw (5).

Tightening torque 37 14 1AZ .

Remove ride height sensor.

Installation note:

Replace nut (1).

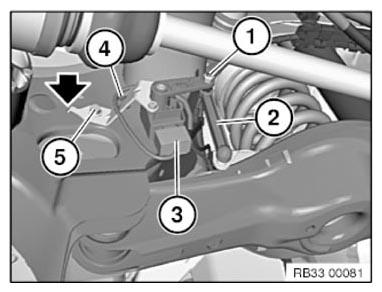

Fig 1: Identifying Holder, Nut And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Align holder with corresponding bore hole on rear axle support.

Replace faulty cable clips.

Replacement:

Release screws (1).

Tightening torque 37 14 2AZ .

Take off ride height sensor from holder (2).

Installation note:

Sensor lever (3) points towards wheel when installed.

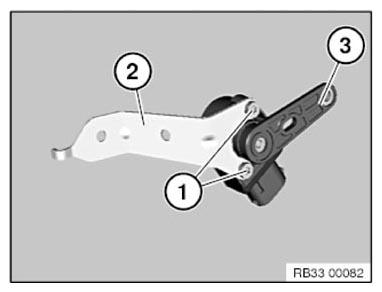

Fig 2: Identifying Sensor Lever, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check headlight adjustment, correct if necessary.
