26 11 052 Replacing flexible disc for rear propeller shaft

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove exhaust system . See 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N47 D16/20 K/U/O/T 1) .
Remove heat shields.

NOTE: To protect universal joints, tie back propeller shaft in area of center mount.

IMPORTANT: Before removing propeller shaft:
The three-hole flange to the rear axle final drive is balanced with the propeller shaft.
The three-hole flange and the propeller shaft must be reassembled in the same position.
Mark three-hole flange (1), flexible disc (2) and propeller shaft (3) in one plane.

Fig 1: Locating Flange Mark, Flexible Disc And Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Release propeller shaft from thee-hole flange and center mount.

Installation note:

Replace ZNS bolts and self-locking nuts.

Tightening torque: 26 11 3/5AZ .

Release screws and remove flexible disc from propeller shaft.

IMPORTANT: Replace ZNS bolts and self-locking nuts.

Tightening torque and angle of rotation 26 11 4AZ .

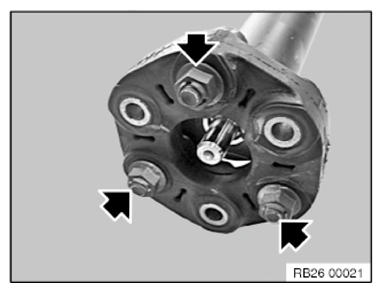

Fig 2: Locating Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check centering on three-hole flange.

IMPORTANT: Plastic centering mount must not be greased.

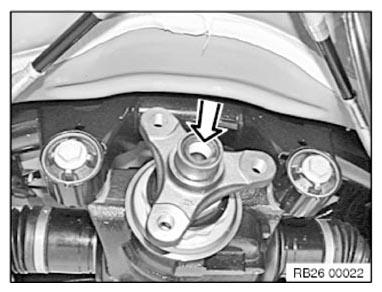

Fig 3: Checking Centering On Three-Hole Flange

Courtesy of BMW OF NORTH AMERICA, INC.
