18 00 020 Removing and installing complete exhaust system (N47 D16/20 K/U/O/T 1)

Special tools required:

• 31 2 220

Necessary preliminary tasks:

• F31, F33, F34, F36 only:

  Remove TENSION STRUT (rear axle) on left and right.

Support exhaust system with jack and special tool 31 2 220 or other suitable special tool and secure against falling down.

Fig 1: Supporting Exhaust System With Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove underbody panelling (2).

Fig 2: Identifying Underbody Panelling And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F30 only:

Release bolts along line (1).

Remove cover from below rear silencer.

Fig 3: Identifying Rear Silencer Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clamp.

If necessary, replace clamp.

Part:  Clamp

Tightening torque 18 31 2AZ .

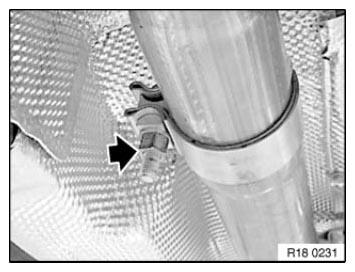

Fig 4: Locating Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Release screws (1).

Tightening torque 18 20 6AZ .

Remove reinforcement plate (2).

Fig 5: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted:

Release screws (1).

Replace screws (1).

Tightening torque 18 20 7AZ .

Unfasten screws (2).

Tightening torque 18 20 6AZ .

Remove reinforcement plate with trailing links.

Fig 6: Identifying Reinforcement Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Tightening torque 18 20 4AZ .

Fig 7: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 20 4AZ .

Lower and remove exhaust system with assistance of a second person.

Fig 8: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check exhaust system for leaks.
