12 51 245 Replacing wiring harness section for engine transmission module (N20, N26)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
Necessary preliminary work:
- Read out the fault memory of the DME control unit.
- Switch off ignition.
- Remove intake PLENUM .
- Remove rear UNDERBODY PROTECTION .

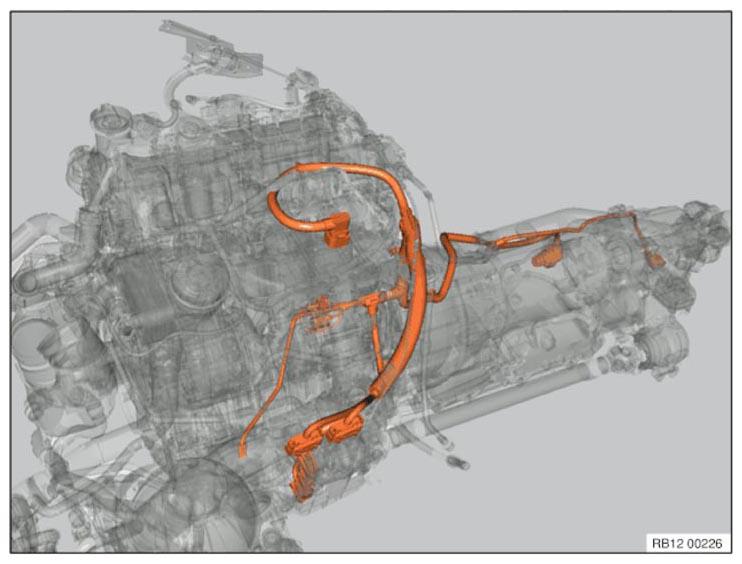

Overview of wiring harness section for engine transmission module (graphic shows wiring harness for vehicles with automatic transmission and four-wheel drive).
Unlock and pull off the connector (1) from the power distribution module and cable holders.
Release the clamp (2) and expose the wiring harnesses.
| Unlock and disconnect following connectors and lines | |
| Unlock and disconnect connector on DME control unit | |
| Unlock connector on air conditioning compressor and disconnect | |
| Unlock connector on starter motor and disconnect | |
| Release ground cable of crankcase | |
| Unlock and disconnect connector for wiring harness section of engine sensor system module 1 | |
| Unlock connector on pressure converter and disconnect | |
| Unlock and disconnect connector on reversing light switch | Manual gearbox only |
| Unlock and disconnect connector from control unit on transfer box | All-wheel drive vehicles only |
| Unlock connector on transmission and disconnect | Automatic transmission only |
Release wiring harness if necessary from existing clips and clamps.
Feed out wiring harness and remove.
Installation note:
Check wiring harness installation arrangement.
Check plug connections for correct fit.
Check stored fault message.
Clear diagnostic fault entries from fault memory.
