12 31 020 Removing and installing/replacing alternator (N47 D16/20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Disconnect BATTERY NEGATIVE LEAD .
Remove DRIVE BELT FOR ALTERNATOR .
Remove THROTTLE BODY .
Remove INTAKE PLENUM .

Release connector (1) and remove.

Slacken nut (2).

Tightening torque 12 52 2AZ .

Disconnect positive battery cable from alternator.

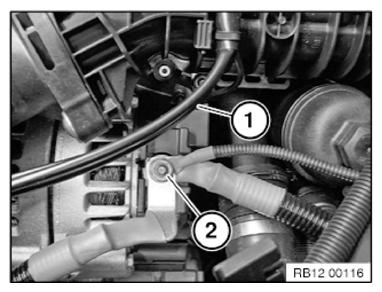

Fig 1: Identifying Alternator Connector And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove cover from deflecting element and undo bolt (1) beneath it.

Tightening torque 12 31 2AZ .

Remove deflecting element.

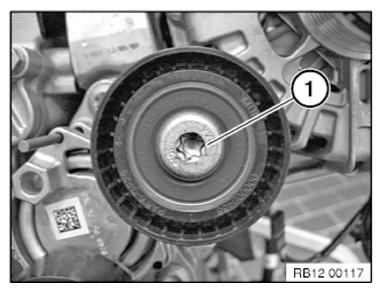

Fig 2: Identifying Deflecting Element And Undo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 31 1AZ .

Feed out alternator upwards and remove.

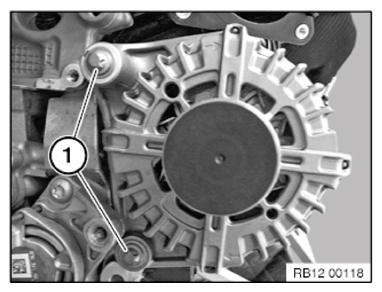

Fig 3: Identifying Alternator Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Clear diagnostic fault entries from fault memory.
