51 16 165 Removing and installing complete center console

Necessary preliminary tasks:

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

NOTE:

Release screws (1).

Tightening torque 51 16 8AZ .

Remove front storage tray (2) in direction of arrow.

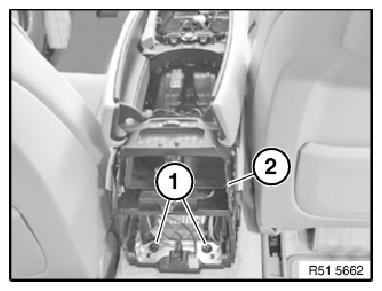

Fig 1: Removing Front Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on instrument panel (2).

Tightening torque 51 16 8AZ .

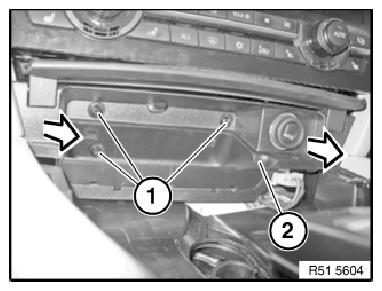

Fig 2: Identifying Instrument Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on tunnel (1) on left and right.

Tightening torque 51 16 7AZ .

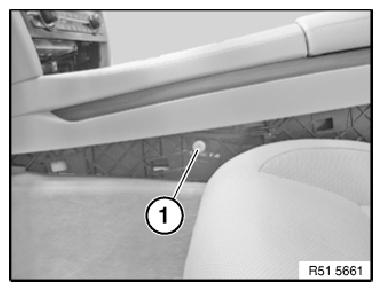

Fig 3: Identifying Tunnel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 4AZ .

Feed out center console (2) towards rear.

Unlock and disconnect plug connections and plug holders underneath.

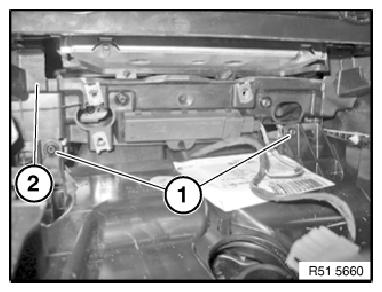

Fig 4: Identifying Center Console And Screws
