51 43... Removing and installing/replacing trim for rear roof pillar (D-pillar), left or right

Special tools required:

Necessary preliminary tasks

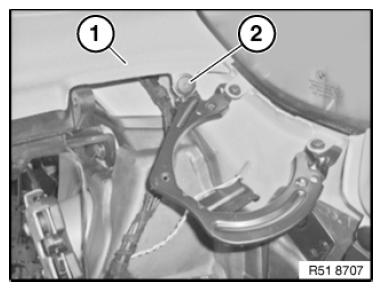

Detach expanding rivet (2) from trim panel (1).

Fig 1: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

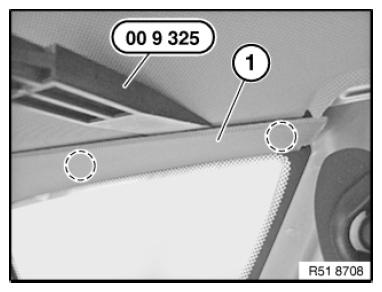

Unclip and remove trim panel (1) from roof frame at marked locations using special tool 00 9 325 .

Fig 2: Identifying Trim Panel, Latch Mechanism And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (2) must not be damaged.

Replacement

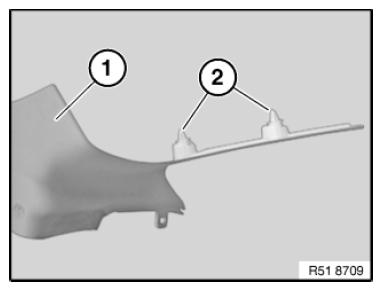

Modify clip (2) of trim panel (1).

Fig 3: Identifying Switch Cluster Area Screws

Courtesy of BMW OF NORTH AMERICA, INC.
