51 47... Removing and installing/replacing left or right shoulder trim panel

Special tools required:

Necessary preliminary tasks

Luggage compartment light must be completely removed to be able to remove shoulder trim panel.

Remove screws (1) from shoulder trim panel (2).

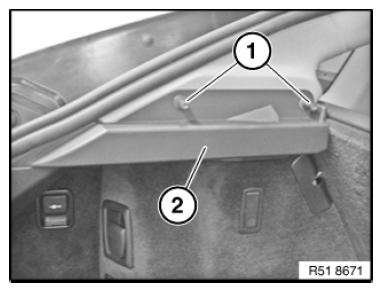

Fig 1: Identifying Shoulder Trim Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip shoulder trim panel (1) with special tool 00 9 325 as shown and remove shoulder trim panel (1).

Installation note:

Do not clamp rear lid seal (2) in region of shoulder trim panel (1).

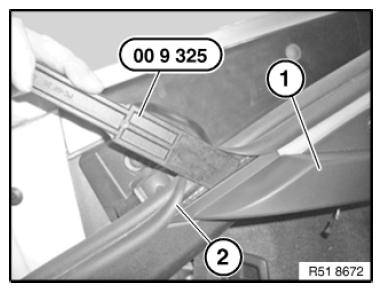

Fig 2: Removing Shoulder Trim Panel Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace defective clamps (1) on shoulder trim panel (2).

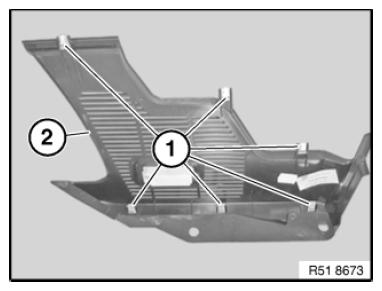

Fig 3: Identifying Shoulder Trim Panel And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
