51 11 156 Removing and installing (replacing) front bumper panel

IMPORTANT: Before making repairs on the bumper panels with the "active pedestrian protection", the associated notes must be observed.

Necessary preliminary tasks

Not for M5:

Release expanding rivet (1) from left and right air ducts (2).

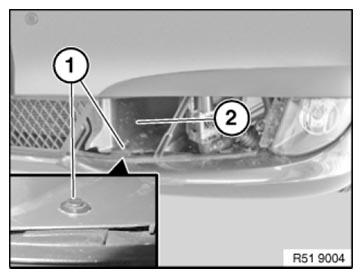

Fig 1: Identifying Expanding Rivet And Right Air Ducts
G08421615Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing (1).

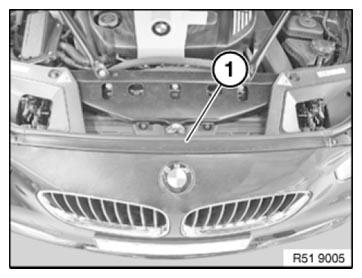

Fig 2: Identifying Grille Sealing
G08421616Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivet (2) of side cover (1) on left and right.

Raise side cover (1) for each of the next operations.

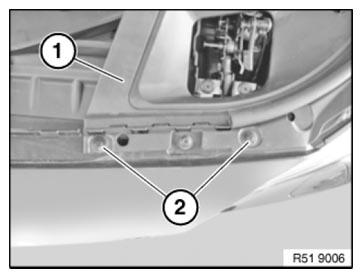

Fig 3: Identifying Expanding Rivet And Side Cover
G08421617Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws at top and bottom on bumper panel (1).

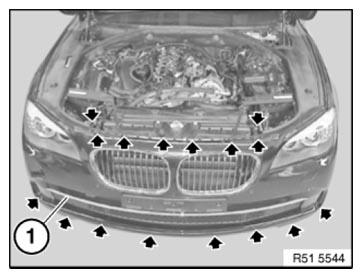

Fig 4: Locating Top And Bottom Bumper Panel Mounting Screws
G08421618Courtesy of BMW OF NORTH AMERICA, INC.

Version with night vision:

Release retaining screw (1).

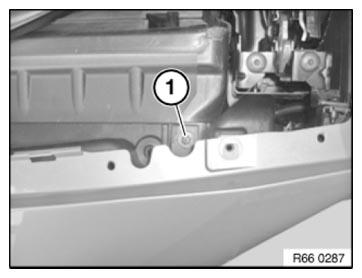

Fig 5: Identifying Retaining Screw
G08421619Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The wheel was removed for clarity.
Change steering angle to suit current the current job item.

Release bolt (1) on wheel arch panel. Tilt wheel arch panel sideways.

Release left and right screws (2) behind.

Tightening torque 51 11 11AZ .

IMPORTANT: Bumper panel must not be pulled out sideways (risk of damage).

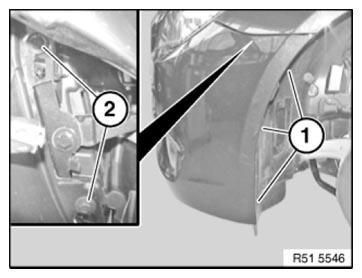

Fig 6: Identifying Wheel Arch Panel Bolt And Screws
G08421620Courtesy of BMW OF NORTH AMERICA, INC.

For version with Side View camera:

Unlock plug connection (3) on left and right and disconnect.

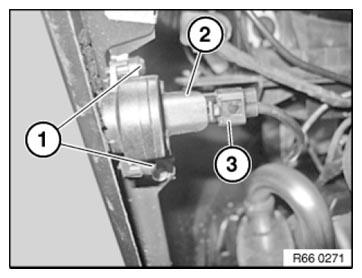

Fig 7: Identifying Plug Connection, Wheel Arch Panel Bolt And Screws
G08421621Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Bumper panel must not be pulled out sideways (risk of damage).

Disconnect the right wiring harness connector and if necessary the additional plug-in contacts and feed out cable.

Version with night vision:

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1) and disconnect.

Remove bumper panel straight towards front with aid of a 2nd person.

Installation note:

Observe 41 00... BODY GAP DIMENSIONS .

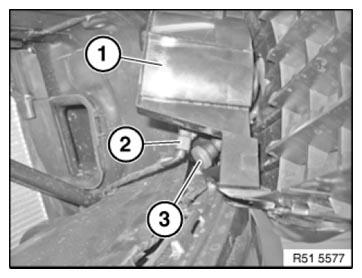

Fig 8: Identifying Plug Connection, High-Pressure Nozzle Line And Night Vision Camera
G08421622Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
