52 25 137 Removing and installing/replacing backrest frame

Necessary preliminary tasks

• Remove right REAR SEAT .

Unfasten plug connection (1) and disconnect.

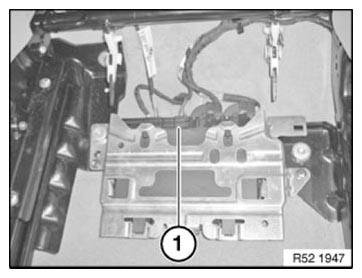

Fig 1: Identifying Rear Seat Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew all bolts.

Tightening torque 52 25 01AZ .

Work with helper to remove backrest frame from vehicle.

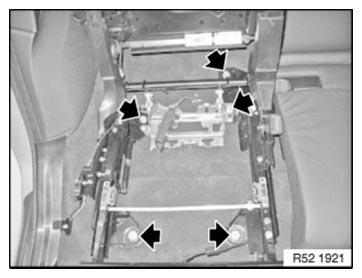

Fig 2: Locating Backrest Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
