52 25 007 Removing and installing/replacing right rear seat

Unclip rear seat to the front and pull up.

Installation:

Pull belt buckle through recess in rear seat.

Fig 1: Pulling Belt Buckle In Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection for switch combination and disconnect.

Depending on optional equipment:

If necessary, release plug connection for seat fan and/or seat heating and disconnect.

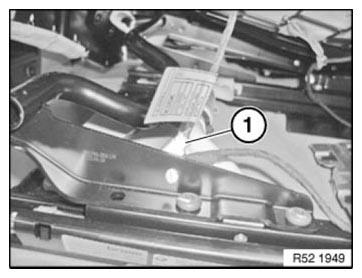

Fig 2: Identifying Plug Connection For Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.
