61 31 041 Removing and installing operating element for assist system
Special tools required:
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .
Necessary preliminary tasks
- Remove decorative strip on instrument panel on left. See 51 45 370 REMOVING AND INSTALLING (REPLACING) LEFT DECORATIVE STRIP ON DASHBOARD .

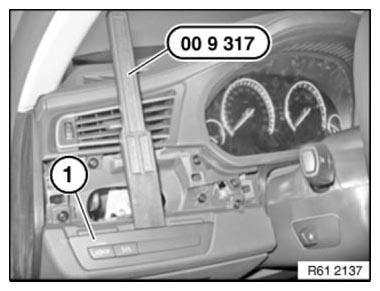

Carefully lever driver assist system (1) out with special tool 00 9 317 .
Disconnect plug connection behind and remove driver assistance system (1).
Installation note:
Make sure driver assistance system (1) is correctly seated.
