65 50 170 Replacing cover for Central Information Display (CID, TPO)

Special tools required:

NOTE: These repair instructions apply to the Central Information Display (CID) of the manufacturer TPO.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work

Release screws at marked points.

Tightening torque 65 50 3AZ .

NOTE: To tighten screws, use special tool 00 9 460 .

Remove rear cover (1) of central information display (2).

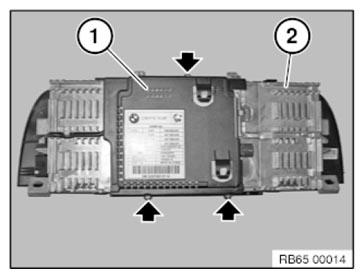

Fig 1: Identifying Central Information Display And Rear Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach adhesive tape fixation (1).

Installation note:

A new adhesive tape is included with the replacement part delivery.

Disconnect plug connection (2).

IMPORTANT: Risk of damage!
The wiring harness (4) can be crushed by the cover (3) at the position marked by the arrow!

Installation note:

The adhesive tape (1) of the wiring harness (4) must be applied before installation of the cover (3)!

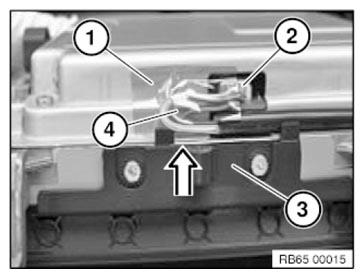

Fig 2: Identifying Adhesive Tape Fixation, Plug Connection, Cover And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws at marked positions.

Tightening torque 65 50 2AZ .

NOTE: To tighten screws, use special tool 00 9 450 .

Feed out cable (2) from guides.

Installation note:

Ensure correct cable routing (2).

Carefully raise latch mechanisms (1) and remove central information display cover (3).

Installation note:

Make sure latch mechanisms (1) are heard to click into place.

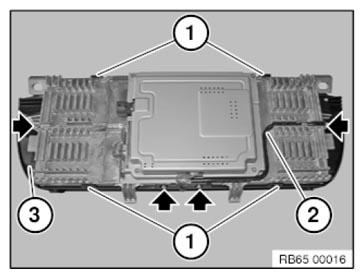

Fig 3: Locating Screws Releasing Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure cover (3) is correctly seated on central information display.
