65 50 057 Removing and installing/replacing Central Information Display (CID)

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary work

F01, 02, 03, 04:

F07, 10, 11, 18:

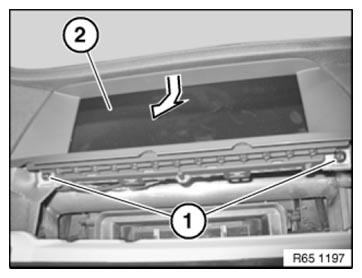

Release screws (1).

Tightening torque 65 50 1AZ .

Guide out CID (2) in direction of arrow.

Fig 1: Removing CID

Courtesy of BMW OF NORTH AMERICA, INC.

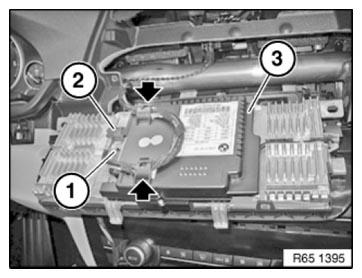

Unlock plug connections (1) and (2) and disconnect.

Remove CID (3).

Installation note:

Ensure correct cable routing.

Fig 2: Identifying Plug Connections And CID

Courtesy of BMW OF NORTH AMERICA, INC.

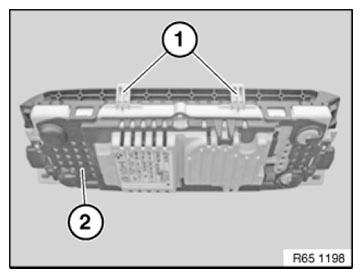

Installation note:

Brackets (1) on CID (2) must be seated correctly in intended dashboard guides.

Fig 3: Identifying Bracket And CID

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
