65 50 030 Removing and installing/replacing TV module

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

NOTE: Follow notes for HANDLING OPTICAL FIBRES .

Necessary preliminary tasks

Remove lid of left luggage compartment trim panel (1).

Remove luggage compartment flap (2).

Fig 1: Identifying Luggage Compartment Trim Panel Lid And Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Lever out expanding rivet (2).

Remove left floor panel support (3).

Fig 2: Identifying Left Shelf Support, Expanding Rivets And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

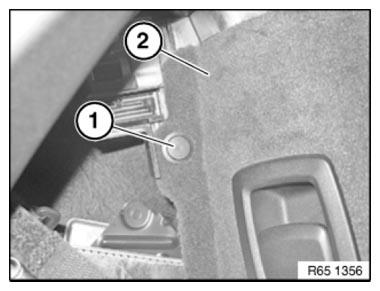

Lever out expanding rivet (1).

Carefully raise wheel arch trim panel (2) a little on left of luggage compartment.

Fig 3: Identifying Expanding Rivet And Wheel Arch Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove bracket (2).

Fig 4: Identifying Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

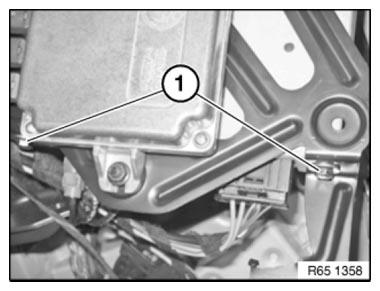

Release screws (1).

Fig 5: Identifying TV Module Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

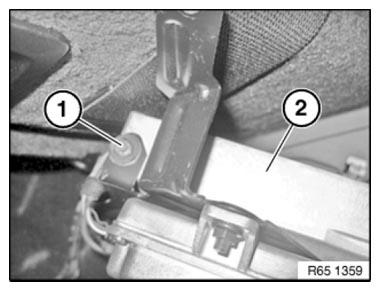

Release screw (1).

Remove TV module (2).

Unlock plug connections and disconnect.

Fig 6: Identifying TV Module And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
