84 50 060 Removing and refitting/replacing Bluetooth aerial (03/2010 on)
Necessary preliminary tasks
Remove rear left door sill cover strip. See 51 47 030 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT ENTRANCE COVER STRIP (INSIDE) .

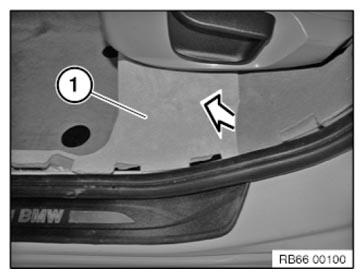

Lay floor trim (1) to one side.
Unclip Bluetooth aerial (1) in direction of arrow.
NOTE:
Bluetooth aerial lead is connected to Telematic Control Unit/Combox.
F01, F02, F03, F04, F10, F11, F18:
Telematic Control Unit/Combox is located underneath luggage compartment left wheel arch panel
F07:
Telematic Control Unit/Combox is located underneath spare wheel well front trim panel. See 51 47... REMOVING AND INSTALLING/REPLACING FRONT PANEL OF SPARE WHEEL WELL .

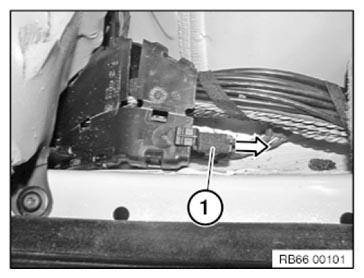

Expose Bluetooth aerial lead to Telematic Control Unit/Combox and unplug connector.
