51 47... Removing and installing/replacing front panel of spare wheel well

Necessary preliminary tasks

• Remove front luggage compartment floor trim panel .

Remove expanding rivets (1) from front panel of spare wheel well (2).

Installation:

Replace faulty expanding rivets (1).

Lift out front panel of spare wheel well (2).

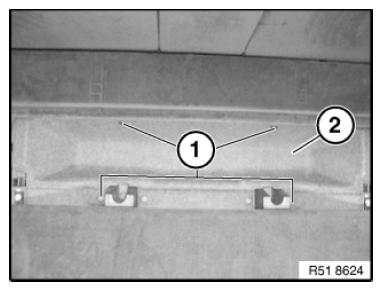

Fig 1: Identifying Rivets And Front Panel Of Spare Wheel Well

Courtesy of BMW OF NORTH AMERICA, INC.
