66 54 015 Replacing lens cover for night vision camera

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Unlock latch mechanisms (1) and unfasten cover (2) in direction of arrow.

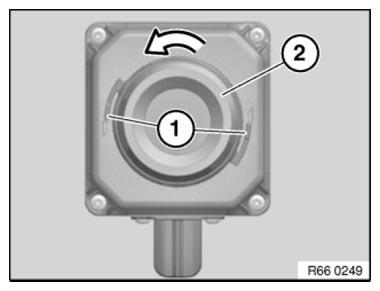

Fig 1: Unlocking Latch Mechanisms Of Night Vision Camera

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully remove sealing ring (1).

IMPORTANT: Adjoining surface of lens must not be damaged when sealing ring is removed!

Installation note:

Replace sealing ring.

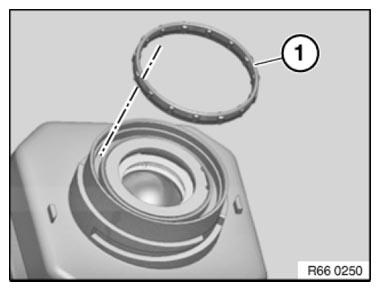

Fig 2: Identifying Night Vision Camera Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Thoroughly clean seal recess (1) with cleaning agent* containing alcohol and cotton bud.

*BMW part number: 83 11 0009712

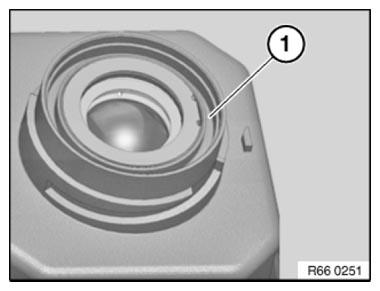

Fig 3: Identifying Night Vision Camera Seal Recess

Courtesy of BMW OF NORTH AMERICA, INC.

After installation
