66 54 010 Removing and installing complete night vision camera

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

Necessary preliminary work

Release screws (2) on holder for camera (1).

Unclip latch mechanisms (3) on camera holder (1).

Remove camera including holder (1).

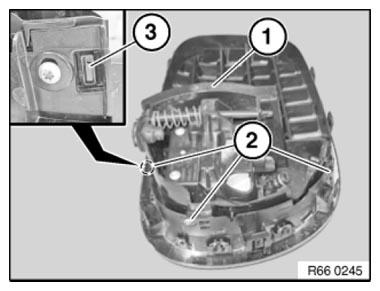

Fig 1: Identifying Camera Holder, Screws And Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
