61 61 100 Removing and installing/replacing both windscreen wiper arms

Special tools required:

IMPORTANT: After installation CHECK SETTING DIMENSION AND CONTACT ANGLE of the wiper arm.

Remove caps (1).

Release nuts underneath.

Tightening torque 61 61 2AZ .

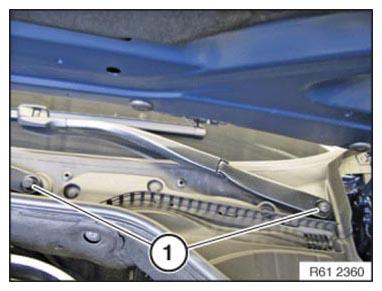

Fig 1: Identifying Windscreen Wiper Arms Caps

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of breakage!
Do not bend wiper arm when removing.

Detach windscreen wiper arm with special tool 61 6 060 .

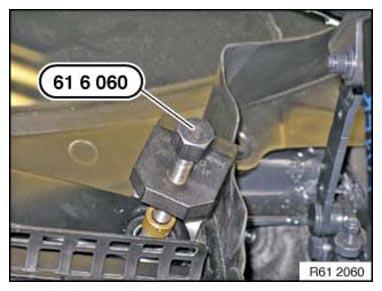

Fig 2: Disconnecting Windscreen Wiper Arm Using Special Tool (61 6 060)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Danger of loosening!
Observe tightening specifications without fail.
