61 61 010 Checking contact angle of windscreen wiper arms on front windscreen

Special tools required:

NOTE: Precisely adjusting the contact angle of the wiper arms is crucial to determining wiping quality.

IMPORTANT: Wiper arms are only checked and not adjusted. SETTING DIMENSIONS .

Remove wiper blade (1) from wiper arm (2).

Journal (3) is the fixture point for special tool 61 6 100 .

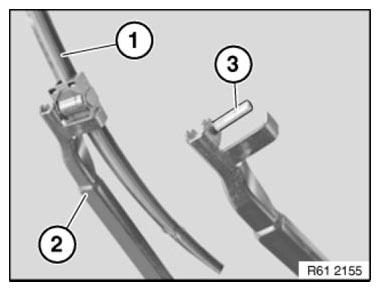

Fig 1: Identifying Wiper Blade, Wiper Arm And Journal

Courtesy of BMW OF NORTH AMERICA, INC.

Slide special tool 61 6 100 onto journal (1).

Place special tool 61 6 100 on windscreen (2) and read off value in degrees on scale.

NOTE: LHD vehicles are covered by the scale range of 0 to -5 and RHD vehicles by the scale range of 0 to +5.

Fig 2: Sliding Special Tool (61 6 100) Onto Journal

Courtesy of BMW OF NORTH AMERICA, INC.
