61 67 100 Removing and installing/replacing left high-pressure nozzle of headlight cleaning system

Special tools required:

Necessary preliminary tasks

To prevent excess escape of washer fluid, seal off end of high pressure line with special tool. 13 3 010

Fig 1: Sealing Off End Of High Pressure Line Using Special Tool (13 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

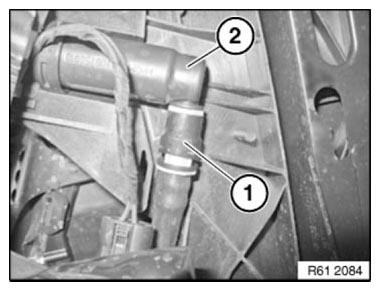

Unlock high pressure line (1) and detach from high-pressure nozzle (2).

Fig 2: Identifying High Pressure Line And Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

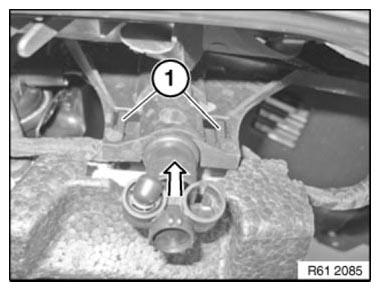

Unlock high-pressure nozzle (1) and remove in direction of arrow rearwards.

Fig 3: Removing High-Pressure Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure guide (1) is correctly seated.

New washer jets are already preset.

Top up washer fluid.

Carry out function check.

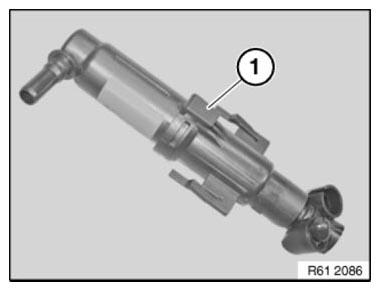

Fig 4: Identifying High-Pressure Nozzle Guide
