67 61 505 Replacing electric motor with gearbox (front) for operation of slide/tilt sunroof

Necessary preliminary work

NOTE: Secure electric motor with gearbox (2) from falling out.

Release screws (1).

Tightening torque 54 13 01AZ .

NOTE: Screws (1) are microencapsulated and must be replaced.

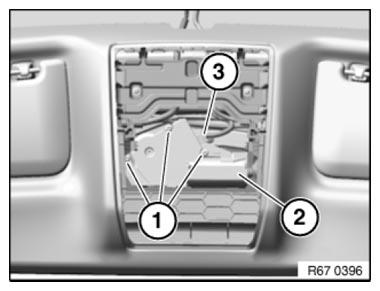

Fig 1: Identifying Gearbox, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove electric motor with gearbox (2).

Unlock plug connection (3) and disconnect.

Installation note:

Insert gear (1) of electric motor with gearbox for operation of slide/tilt sunroof (2) exactly in gearing (3).

Fig 2: Identifying Electric Motor Gear, Slide/Tilt Sunroof And Gearing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:
