61 31 043 Removing and installing/replacing roof switch cluster (complete with cover) (roof function center)

Special tools required:

IMPORTANT: Follow notes for handling light bulbs (INTERIOR LIGHTING) .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Carefully unclip cover (1) with special tool 00 9 323 and remove.

Installation note:

Ensure cover (1) is correctly seated.

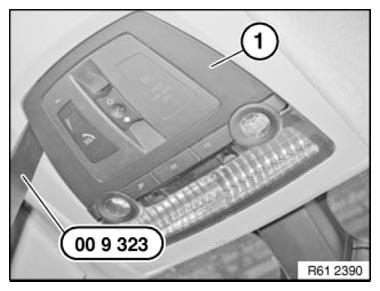

Fig 1: Removing Roof Switch Cluster Cover Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining lugs (1) with suitable tool while carefully lifting out with special tool 00 9 325 .

Remove roof switch cluster (2) in direction of arrow.

Unlock plug connections underneath and disconnect.

Installation note:

Retaining lugs (1) must not be damaged.

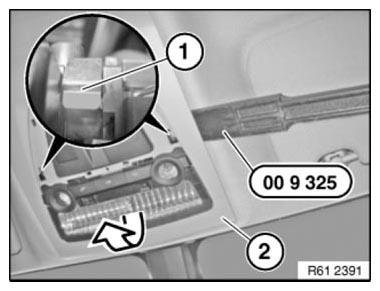

Fig 2: Removing Roof Switch Cluster Using Suitable Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure roof switch cluster (2) is correctly fitted.

INITIALIZE slide/tilt sunroof if necessary.

IMPORTANT: Disconnecting the plug connection for the SOS emergency call button results in fault entries in the telephone control unit (restriction in the emergency call system).
After installation, read out fault memory and if necessary delete entry.
