67 61 007 Replacing electric motor with gearbox (rear) to operate the slide/tilt sunroof
Necessary preliminary work
- Remove REAR GRAB HANDLES .
- Remove trim panel for rear left and right roof pillar (C-pillar). See 51 43 251 REMOVING AND INSTALLING OR REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) .
- Remove trim panel for rear left and right roof pillar (D-pillar). See 51 43 ... REMOVING AND INSTALLING/REPLACING TRIM FOR REAR ROOF PILLAR (D-PILLAR), LEFT OR RIGHT .
- Remove COMPLETE INTERIOR ROOF LIGHT .
- Detach edge protection in area of headliner.
IMPORTANT:
Do not under any circumstance kink headliner (1).

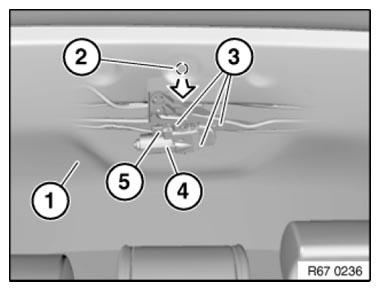

Unclip headliner (1) at retaining point (2) towards bottom and lower.
NOTE:
Secure electric motor drive with gearbox (4) from falling out.
Release screws (3).
Tightening torque 54 13 01AZ.
NOTE:
Screws (3) are microencapsulated and must be replaced.
Remove electric motor with gearbox (4).
Unlock plug connection (5) and disconnect.
Installation note:
Insert gear wheel (1) of electric motor with gearbox (2) exactly in gearing (3).
Installation note:
- Initialize SLIDE/TILT SUNROOF .
