51 13 402 Removing and installing/replacing handle strip

Necessary preliminary tasks

Release screws (1).

Tightening torque 51 13 2AZ.

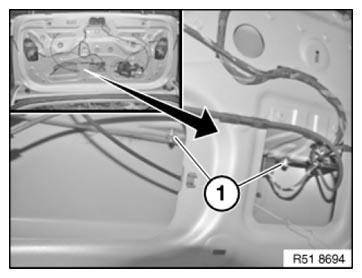

Fig 1: Identifying Handle Strip Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 51 13 3AZ .

Fig 2: Identifying Handle Strip Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Detach handle strip (1) in direction of arrow from tailgate.

Fig 3: Disconnecting Handle Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plugs (3) and (4).

Check clips (2) for any damages. replacing if necessary.

IMPORTANT: If clip mountings (1) are removed during further operations (e.g. painting), always replace these mounting to ensure watertightness.

Fig 4: Identifying Clip Mounting, Plugs And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

5113402 Removing and installing/replacing handle strip
