66 54 511 Replacing night vision camera

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

IMPORTANT: New component contains a CD with deblocking code.
Enable code CD is requested during coding/programming by the SSS.
Coding/programming without the enable code CD is not possible!

Necessary preliminary work

Removing SPRAY NOZZLE FOR NIGHT VISION CAMERA .

Release screws (2) on holder for camera (1).

Unclip catches (3) on camera holder (1).

Remove camera including holder (1).

Fig 1: Identifying Camera Holder, Screws And Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

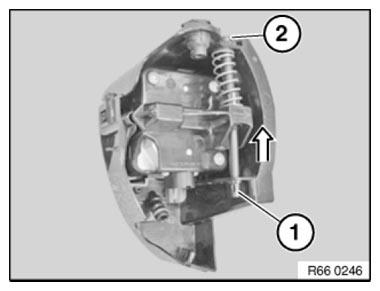

Release lock (1) at adjusting screw (2) and press upwards in direction of arrow.

At same time twist out adjusting screw (2) and pull out complete pin with spring.

Fig 2: Pressing Adjusting Screw Lock Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

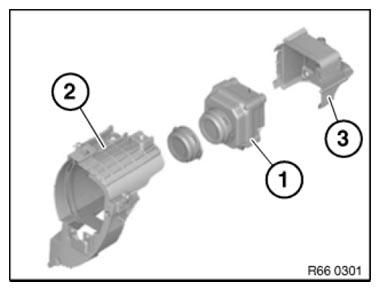

Holder (2) and fixture (3) must also be replaced when replacing camera (1).

Fig 3: Identifying Camera, Holder And Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly of individual parts:

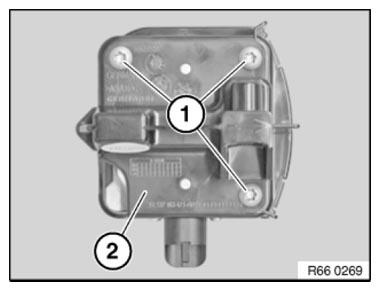

Place mount (2) on camera.

Tighten screws (1).

Tightening torque 66 54 1AZ .

Fig 4: Identifying Camera Mounting And Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

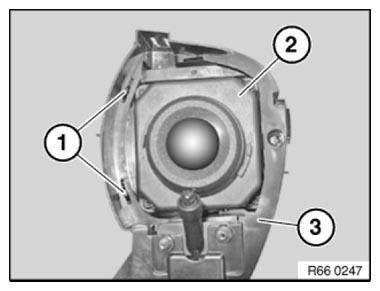

Insert camera (2) with mount in holder.

Retaining lugs (1) on the mount must engage correctly in the guides on the holder (3).

Fig 5: Identifying Camera, Retaining Lugs And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Adjust NIGHT VISION CAMERA .

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING.
