51 23 220 Removing and installing/replacing Bowden cable for engine compartment lid at rear

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

Necessary preliminary tasks

Unclip clutch housing Bowden cable (1) at marked points.

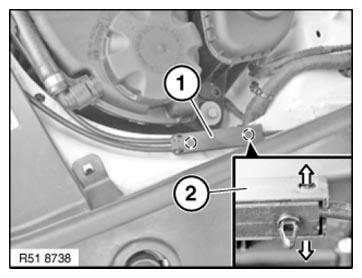

Fig 1: Releasing Clutch Housing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clutch housing cover (3) in direction of arrow and fold back.

Feed rear Bowden cable (2) out of sliding block (1) and clutch housing (3).

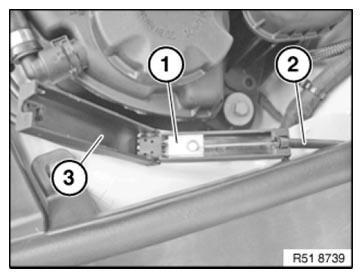

Fig 2: Identifying Rear Bowden Cable, Sliding Block And Clutch Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Footwell area, driver's side:

Lever Bowden cable (1) out of actuator for unlocking engine compartment lid (2).

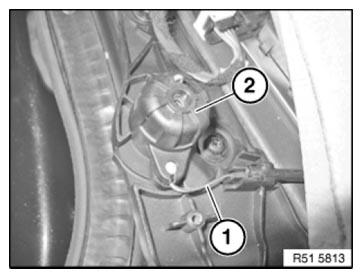

Fig 3: Identifying Bowden Cable And Engine Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Pull Bowden cable (1) out of bulkhead penetration (2).

Installation:

Make sure Bowden cable (1) is correctly laid.

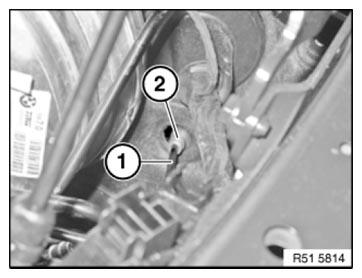

Fig 4: Identifying Bowden Cable And Bulkhead Penetration

Courtesy of BMW OF NORTH AMERICA, INC.

5123220 Removing and installing/replacing Bowden cable for engine compartment lid at rear
