67 62 000 Removing and installing or replacing flat motor for front left or right power window unit

Necessary preliminary tasks

• Remove FRONT POWER WINDOW UNIT .

Release screws (1) and detach flat motor (2) from power window unit.

Tightening torque: 67 62 1AZ

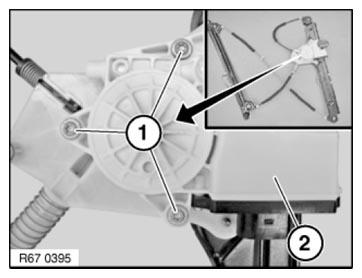

Fig 1: Identifying Flat Motor And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

An initialization must be carried out in order to activate anti-trapping protection.

Read and comply with NOTES on initializing power windows.
