51 33 000 Removing and installing / replacing power window regulator in left or right front door

Special tools required:

WARNING: Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks

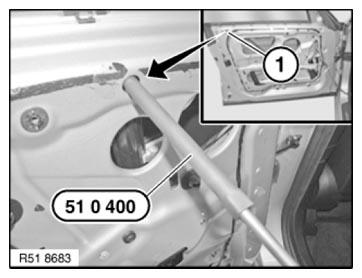

Release nut (1) with special tool 51 0 400 .

Tightening torque 51 33 6AZ .

Fig 1: Releasing Nut Using Special Tool (51 0 400)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove blanking plug.

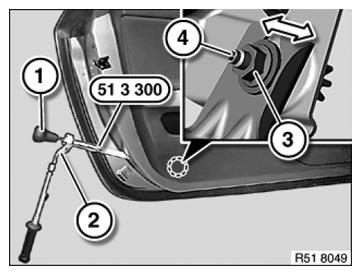

Loosen nut (3) with special tool 51 3 300 .

Remove rear section of power window unit.

Tightening torque 51 33 4AZ .

Fig 2: Turning Knob Using Special Tool (51 3 300)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

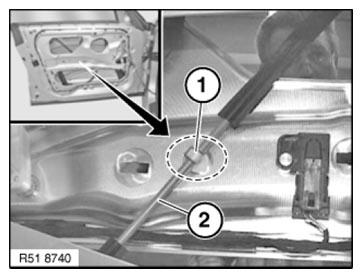

Clip power window cable guide (2) into clip (1).

Fig 3: Identifying Power Window Cable Guide And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

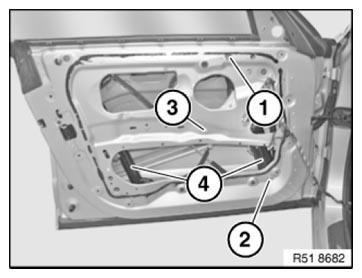

Peel back film (1) and release nuts below it.

Unscrew nuts (2).

Tightening torque 51 33 3AZ .

Unscrew nut (3).

Tightening torque 51 33 2AZ .

Completely remove power window unit (4).

Installation note:

Replace faulty film (1).

Fig 4: Identifying Power Window Unit, Back Film And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks

Replacement

5133000 Removing and installing / replacing power window regulator in left or right front door
