51 11 060 Removing and installing/replacing support for front bottom bumper panel

Necessary preliminary tasks

• Remove front BUMPER PANEL .

Version with ACC:

Drill out blind rivet (1).

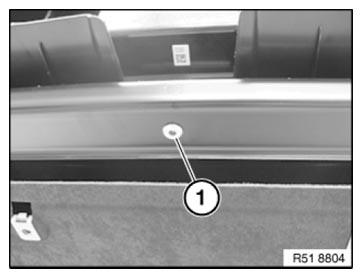

Fig 1: Identifying Blind Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolts (2) on left and right on cross-member (1).

Tightening torque 51 11 5AZ .

Remove carrier (1).

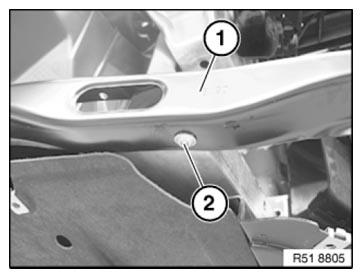

Fig 2: Identifying Cross-Member And Mounting Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
