51 47... Removing and installing/replacing left or right trim panel

Necessary preliminary tasks

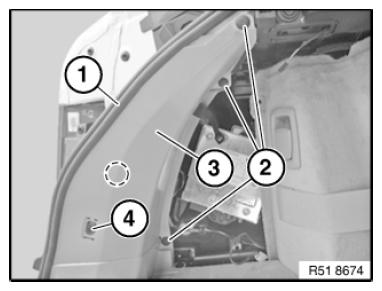

Pull off rear lid seal (1) in area of trim panel (3).

NOTE: For purposes of clarify, screw cover has already been removed in graphic.

Release screw (4) under cover.

Release expanding rivets (2).

Unclip trim panel (3) in marked area and remove.

Fig 1: Identifying Rear Lid Seal, Trim Panel, Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty clip (white).

Replacement

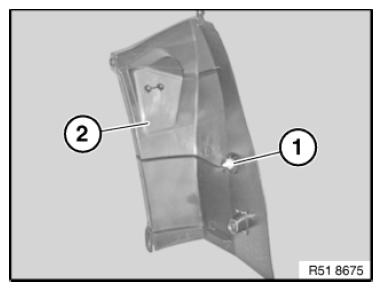

Modify clip (1) of trim panel (2).

Fig 2: Identifying Clip And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
