65 50... Removing and installing/replacing friction hinges for rear cabin monitor

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Do not damage or scratch display.

Necessary preliminary tasks

Release screws (1).

Tightening torque 65 50 1AZ .

Remove cover (3) from rear cabin monitor (4), unclipping plug (2) and feed out cable.

Installation:

Make sure cover (3) is correctly seated on rear cabin monitor (4).

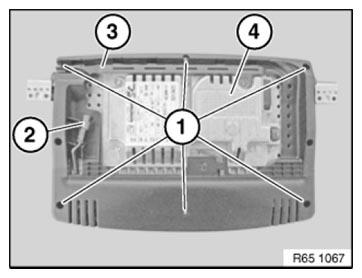

Fig 1: Identifying Rear Cabin Monitor, Plug, Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque 65 50 2AZ .

Remove friction hinges (1) from rear cabin monitor (3).

Installation:

Observe gap dimension adjustment when screwing friction hinges (2) to rear cabin monitor (3) on left and right.

Gap dimensions:

0.9 mm
1.5 mm

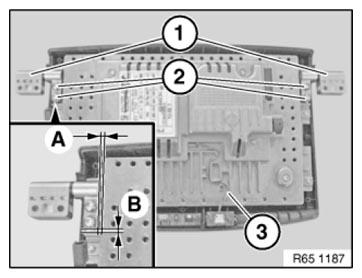

Fig 2: Identifying Friction Hinges, Rear Cabin Monitor And Mounting Screws
Courtesy of BMW OF NORTH AMERICA, INC.
